| Giao diện quản lý: | CLI, SNMP, API REST | Tính khả dụng cao: | Portchannel ảo, FabricPath, ISSU |
|---|---|---|---|
| Độ ẩm hoạt động: | 5 đến 95% không ngưng tụ | Bảo hành: | Bảo hành trọn đời có giới hạn |
| Cung cấp điện dư thừa: | Vâng | Kết nối trung tâm dữ liệu: | OTV, LISP, MPLS, EVPN |
| Nguồn cung cấp điện: | Dual dư thừa, có thể hoán động nóng | Hỗ trợ lớp: | Lớp 2, Lớp 3 |
| Yếu tố hình thức: | Rack-mountable | Tốc độ: | 1/10/25/40/50/100/400 GBPS |
| Giao thức được hỗ trợ: | Ethernet, Kênh sợi quang, FCOE, VXLAN | Giao diện đường lên: | Tối đa 8 x 40/100-Gbps cổng QSFP28 |
| Bảo hành sản phẩm: | Bảo hành trọn đời có giới hạn | Cảng: | 48/96/144/192/288/384/768 |
High-Performance 10-Port Gigabit Switch With VLAN & QoS For Secure Business Networks

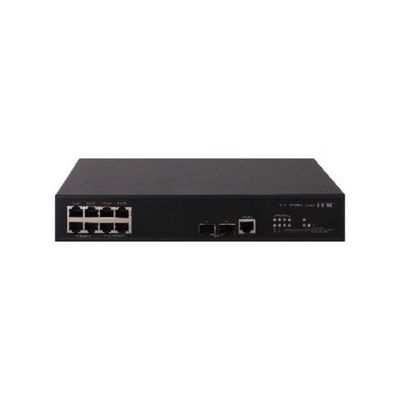

The H3C LS-3100V3-10TP-EI-H1 is a feature-rich 10-port Gigabit Ethernet switch designed for small to medium businesses (SMBs) requiring high-speed, secure, and reliable network connectivity. With advanced VLAN, QoS, and security features, this managed switch ensures optimized traffic control, network segmentation, and protection against unauthorized access—ideal for office networks, IP surveillance, and VoIP deployments.
✔ 10 Gigabit Ethernet Ports – Supports 10/100/1000Mbps auto-negotiation, delivering high-speed connectivity for bandwidth-intensive applications.
✔ Advanced VLAN & QoS Support – Enables 802.1Q VLAN tagging for network segmentation and priority-based traffic management (DSCP/802.1p) for smooth VoIP and video streaming.
✔ Robust Security – Features 802.1X authentication, port security, and ACLs to prevent unauthorized access and network attacks.
✔ Reliable Redundancy – Supports STP/RSTP/MSTP for loop prevention and fast network recovery.
✔ Energy-Efficient Design – Complies with IEEE 802.3az (EEE), reducing power consumption without sacrificing performance.
✔ Easy Management – Web GUI & CLI for flexible configuration, suitable for IT administrators.
| Category | Specification |
|---|---|
| Ports | 10 x 10/100/1000BASE-T (RJ45) |
| Switching Capacity | 20Gbps |
| MAC Address Table | 8K entries |
| VLAN Support | 802.1Q, Port-based, Voice VLAN |
| QoS | 802.1p, DSCP, 4 priority queues |
| Security | 802.1X, Port Security, ACL, Storm Control |
| Management | Web, CLI, SNMP, HGMP |
| Power Consumption | <12W (Typical) |
| Dimensions | 440 x 160 x 43.6 mm |
Business-Grade Performance – Ensures low-latency, high-throughput connectivity for demanding applications.
Enhanced Security – Protects against network breaches with enterprise-level access controls.
Easy Deployment – Plug-and-play setup with flexible management options for hassle-free network expansion.
Ideal for SMBs, schools, and retail networks, the H3C LS-3100V3-10TP-EI-H1 is a cost-effective, scalable, and secure solution for modern networking needs.
