| Độ ẩm hoạt động: | 5% đến 95% không ngưng tụ | Dư: | 1+1 hoặc n+1 |
|---|---|---|---|
| Tiêu thụ năng lượng: | 300w | Giao diện quản lý: | 1 x RJ-45 Cổng quản lý Ethernet |
| mô-đun: | Vâng | An ninh: | ACL, COPP, MACSEC |
| có thể xếp chồng lên nhau: | Vâng | Độ trễ: | Dưới 1 micro giây |
| Hỗ trợ Vlan: | Vâng | Loại cổng: | 25/10/40/100 Gigabit Ethernet |
| Trọng lượng: | 22,2 lbs | Bảo hành: | Bảo hành trọn đời có giới hạn |
| tốc độ cổng: | 25/10/40/100 Gbps | Số cổng: | 48/96/192 |

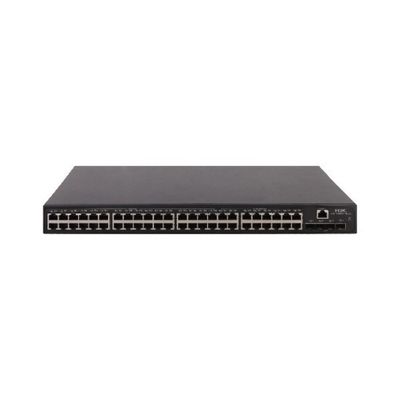

High-Performance L3 Gigabit Switch - 48 Ports , QoS & IPv6 Support - H3C LS-3100V3-52TP-EI-H1
The H3C LS-3100V3-52TP-EI-H1 is a high-performance Layer 3 Gigabit Ethernet switch designed for enterprise networks, campuses, and mid-sized businesses. It delivers wire-speed switching, advanced security, and flexible connectivity to support bandwidth-intensive applications like VoIP, video conferencing, and cloud services.
✅ High-Density Ports
48x 10/100/1000M RJ45 ports + 4x SFP fiber uplinks (Combo ports supported).
Layer 3 Routing: Static/RIP/OSPF for inter-VLAN communication.
✅ Enterprise-Grade QoS & Security
Priority queuing (802.1p/DSCP) for lag-free voice/video traffic.
ACL, 802.1X, Port Security, and DHCP Snooping to block unauthorized access.
✅ Future-Ready with IPv6
Dual-stack (IPv4/IPv6) support for seamless migration.
✅ Reliable & Easy to Manage
VRRP/STP/RSTP for redundancy.
Web/CLI/SNMP management + H3C iMC compatibility.
| Category | Details |
|---|---|
| Ports | 48x 1G RJ45, 4x 1G SFP |
| Switching Capacity | 256 Gbps |
| Forwarding Rate | 95 Mpps |
| Routing Protocols | Static, RIP, OSPF |
| Security | ACL, 802.1X, IP-MAC Binding |
| QoS | 8 priority queues, WRED |
| Power Supply | 100-240V AC (single, dual PSU optional) |
| Dimensions | 440 x 260 x 44 mm (Rack-mountable) |
✔ Cost-Effective – Combines L2/L3 features in one device.
✔ Scalable – Fiber uplinks for long-distance backbone links.
✔ Low Latency – 95 Mpps throughput for real-time apps.
Ideal for: Office networks, school campuses, SMB core/distribution layers.
