| Tiêu thụ năng lượng: | 500-3000 Watt | Tính năng sản phẩm: | Portchannel ảo (VPC), FabricPath và LAN mở rộng ảo (VXLAN) |
|---|---|---|---|
| Ảo hóa: | VXLAN | cảng: | 48 x 10/25/40/50/100 Gigabit Ethernet |
| Các tính năng ảo hóa: | VXLAN, NVGR, MPLS | Giao thức quản lý: | SNMP, RMON, Telnet, SSH, CLI |
| Khả năng chuyển đổi sản phẩm: | Lên đến 60 Tbps | Độ ẩm hoạt động: | 5 đến 95% không ngưng tụ |
| Ban quản lý: | Trong ban nhạc và ngoài băng tần | Bộ nhớ flash: | 16 GB |
| Yếu tố hình thức sản phẩm: | Rack-mountable | Ứng dụng: | Mạng trung tâm dữ liệu |
| Tỷ lệ chuyển tiếp: | Lên đến 12,8 bpps | Kích thước: | 17,3 x 17,3 x 1,7 inch |

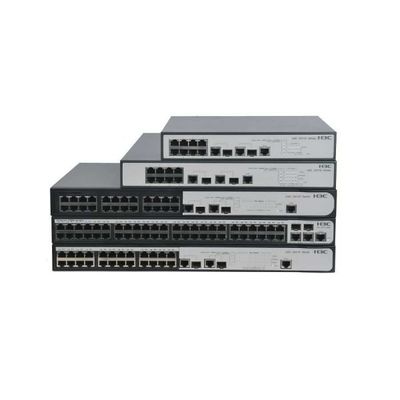

H3C LS-S3110-10TP-1 Switch : 10-Port Gigabit , VLAN/QoS & Silent Fanless Design
The H3C LS-S3110-10TP-1 is a cost-effective 10-port Gigabit Ethernet switch designed for small businesses, offices, and surveillance networks. Featuring 8x 10/100/1000Base-T ports and 2x Gigabit SFP slots (Combo ports), it delivers flexible connectivity for high-speed data transfer. With fanless silent operation, advanced VLAN/QoS support, and plug-and-play deployment, this compact switch ensures reliable performance in bandwidth-intensive environments.
High-Speed Gigabit Connectivity
8x RJ45 ports + 2x SFP slots (fiber/copper uplink options) for scalable networks.
Non-blocking wire-speed switching (14.88Mpps forwarding rate) eliminates bottlenecks.
Advanced Layer 2 Features
VLAN (802.1Q/Port-based): Segment networks for security and traffic control.
QoS (802.1p/DSCP): Prioritize voice/video traffic for smoother performance.
STP/RSTP/MSTP: Redundant link support to prevent loops and downtime.
Easy Management & Security
Web GUI + CLI for flexible configuration (HGMP cluster management supported).
Port security, ACLs, and 802.1X authentication to block unauthorized access.
Energy-Efficient & Durable
Fanless design (0dB noise) with wide-temperature operation (-5°C~45°C).
4kV surge protection on ports for enhanced reliability.
| Model | H3C LS-S3110-10TP-1 Switch |
|---|---|
| Ports | 8x 10/100/1000Base-T, 2x SFP (Combo) |
| Switching Capacity | 20Gbps |
| Forwarding Rate | 14.88Mpps |
| VLANs | 4K VLANs |
| Management | Web, CLI, HGMP |
| Power Consumption | <12W (no PoE) |
| Dimensions (WxDxH) | 180 x 105 x 27mm |
Small office networks: Gigabit connectivity for desktops, IP phones, and servers.
IP surveillance: SFP ports for long-distance camera connections.
Branch deployments: Compact and stackable for space-saving setups.
For a budget-friendly, feature-rich Gigabit switch, the H3C LS-S3110-10TP-1 balances performance, security, and ease of use.
