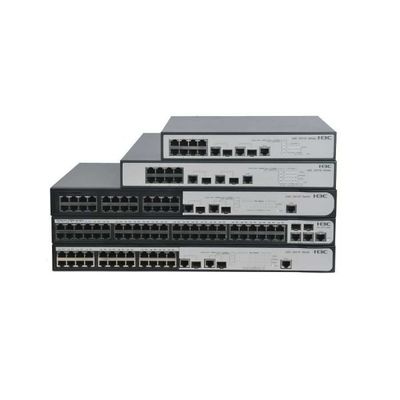

26-Port Gigabit Switch With SFP Slots & Web Management H3C LS-S3110-26TP-1
The H3C LS-S3110-26TP-1 is a high-performance 26-port Gigabit Ethernet switch designed for small to medium businesses (SMBs), enterprise branch offices, and surveillance networks. Featuring 24x 10/100/1000Base-T ports and 2x Gigabit SFP slots, this switch delivers flexible, high-bandwidth connectivity for wired workstations, servers, IP cameras, and more.
✅ Full Gigabit Speeds – All 26 ports support Gigabit Ethernet, ensuring smooth data transfer for bandwidth-intensive applications.
✅ Dual SFP Fiber Uplinks – Expand your network with optional SFP modules (single-mode or multi-mode) for long-distance fiber connectivity.
✅ Easy Web Management – Intuitive web-based GUI for quick setup, VLAN configuration, QoS, and port monitoring.
✅ Enhanced Security – Supports port security, ACLs, and DHCP snooping to prevent unauthorized access and IP conflicts.
✅ Silent & Energy-Efficient – Fanless design reduces noise and power consumption, ideal for office environments.
| Model | H3C LS-S3110-26TP-1 |
|---|---|
| Ports | 24x 10/100/1000Base-T RJ45 + 2x 1000Base-X SFP (Combo) |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.7 Mpps |
| VLAN Support | 802.1Q (4K VLANs) |
| QoS | 802.1p, DSCP prioritization |
| Security | Port isolation, MAC address binding, storm control |
| Management | Web GUI, CLI, H3C iMC (optional) |
| Power Consumption | <15W (typical) |
| Dimensions | 440 x 180 x 44 mm (1U rack-mountable) |
✔ Office Networks – Reliable connectivity for desktops, printers, and VoIP phones.
✔ IP Surveillance – Supports high-bandwidth IP cameras and NVRs.
✔ Small Data Centers – Scalable uplinks via SFP for server/storage connections.
With its plug-and-play deployment, robust security, and energy-saving design, the H3C LS-S3110-26TP-1 is a cost-effective solution for modern business networks.
