| Layer Support: | Layer 2 and Layer 3 switching | Qos: | Supports 8 queues per port |
|---|---|---|---|
| Poe: | Support | Virtualization Support: | VXLAN, NVGRE, and MPLS |
| Packet Buffer Size: | 4MB | Product Size: | 2U |
| Network Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | Vlan Standards: | IEEE 802.1Q |
| Supported Protocols: | IPv4, IPv6, MPLS, OSPF, BGP, IS-IS | Storage Temperature: | -40°C to 70°C |
| Qos Support: | Supports 8 queues per port | Stackable: | Yes/No |
| Power Supply: | AC | Stacking Bandwidth: | 160 Gbps |

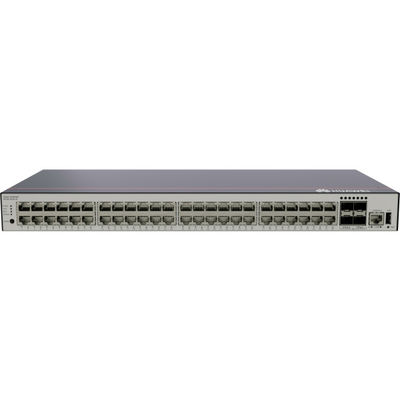

48-Port Gigabit + 4x 10G SFP , Stackable & Secure Huawei Switch S5735R-48T4S-A2
The Huawei S5735R-48T4S-A2 is a high-performance Layer 3 Gigabit switch designed for enterprise and campus networks, combining 48x 1G Ethernet ports and 4x 10G SFP+ uplinks for scalable, high-bandwidth connectivity. Ideal for medium-to-large businesses, data centers, and smart campuses, it delivers advanced security, cloud management, and energy efficiency in a compact form factor.
High-Density Ports: 48x 10/100/1000BASE-T ports + 4x 10G SFP+ slots for flexible uplinks or stacking.
Layer 3 Routing: Supports OSPF, BGP, VRF, and static routing for complex network segmentation.
Stacking (Hybrid Ports): Huawei Stack technology allows up to 16 units to operate as a single logical switch.
Enterprise Security: ACLs, 802.1X, MACsec, and anti-DDoS features for hardened network protection.
Cloud & AI Management: Compatible with iMaster NCE and eSight for zero-touch provisioning and AI-driven analytics.
Energy-Efficient: IEEE 802.3az (EEE) compliance reduces power consumption by up to 30%.
| Parameter | Specification |
|---|---|
| Ports | 48x 1G RJ45 + 4x 10G SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 126 Mpps |
| Stacking | Up to 16 units, 160 Gbps bandwidth |
| Power Supply | AC (dual PSU optional) |
| Dimensions (WxDxH) | 442 x 420 x 44 mm |
| Operating Temp. | 0°C to 45°C |
Future-Proof Scalability: 10G uplinks and stacking support growing bandwidth demands.
Carrier-Grade Reliability: 99.999% uptime with ERPS (<50ms failover) and BFD.
Simplified SDN Integration: Agile Controller compatibility for automated VLAN/ QoS policies.
Deploy the S5735R-48T4S-A2 as an access/aggregation switch for offices, hospitals, or IoT networks. Its low-latency forwarding and enterprise-grade security make it ideal for VoIP, video surveillance, and cloud applications.
