| Operating Temperature: | 0°C to 45°C | Product Type: | Network Interface Cards |
|---|---|---|---|
| Scalability: | Yes | Port: | 24 |
| Power Supply: | AC 100-240V, 50/60Hz | Model: | S5700-28P-LI-AC |
| Packet Buffer: | 2 MB | Port Speed: | 10/100/1000 Mbps |
| Virtualization Support: | VXLAN, NVGRE, and MPLS | Operating Humidity: | 5% to 95% (non-condensing) |
| Form Factor: | Plug-in card | Vlans: | 4096 |
| Multicast Support: | IGMP Snooping, MVR, PIM-SM | Product Series: | CloudEngine |

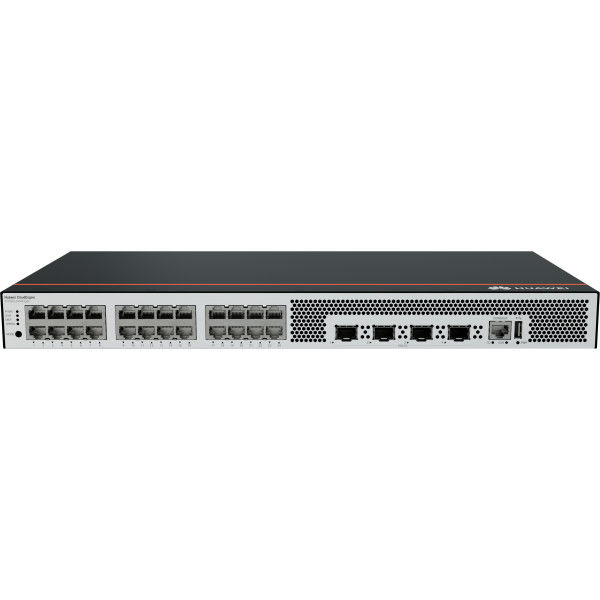

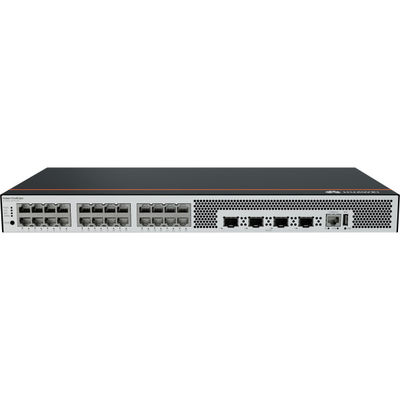

High-Performance Huawei Switch With 24x1G & 4x10G Ports - Secure & Cloud-Managed
The Huawei S5735R-24T4X-QA2 is a next-generation Gigabit Ethernet switch designed for enterprise networks, data centers, and high-performance business environments. Featuring 24x 1Gbps RJ45 ports and 4x 10G SFP+ uplinks, it delivers high-speed connectivity with flexible scalability. Built for security, efficiency, and intelligent management, this switch ensures seamless network operations with cloud-based control and advanced threat protection.
✔ High-Speed Networking – 24x Gigabit Ethernet ports + 4x 10G SFP+ uplinks for scalable bandwidth and low latency.
✔ Cloud-Managed & AI-Driven – Supports Huawei iMaster NCE-Campus for remote monitoring, automated troubleshooting, and real-time analytics.
✔ Enterprise-Grade Security – MACsec encryption, ACLs, DDoS protection, and IEEE 802.1X authentication for secure access control.
✔ Energy-Efficient Design – Low power consumption (35W typical) with smart fan control for reduced operational costs.
✔ High Availability – Dual power supply (optional), Eth-Trunk redundancy, and hot-swappable fans for 24/7 reliability.
| Category | Specification |
|---|---|
| Ports | 24x 10/100/1000BASE-T, 4x 10G SFP+ |
| Switching Capacity | 336 Gbps |
| Forwarding Rate | 87 Mpps |
| Power Supply | AC, optional dual PSU (1+1 backup) |
| Management | Huawei iMaster NCE, CLI, Web, SNMP |
| Security | MACsec, ACL, RADIUS/TACACS+, DDoS protection |
| Cooling | Redundant fans, smart temperature control |
| Dimensions (WxDxH) | 442 x 220 x 43.6 mm |
✅ Enterprise Campus Networks – High-density access & aggregation layer switching.
✅ Data Center Edge – Reliable 10G uplinks for server/storage connectivity.
✅ IoT & Smart Offices – Secure segmentation with VLANs and QoS prioritization.
Optimized for performance, security, and cloud automation, the Huawei S5735R-24T4X-QA2 is a future-proof solution for modern business networks. Searching for a reliable Huawei switch? This model balances speed, intelligence, and robustness for demanding IT environments.
