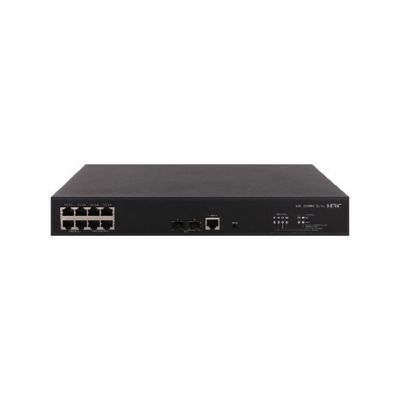

H3C LS-3100V3-10TP-PWR-EI-H1 PoE+ Switch 10-Port Gigabit , 30W Power , Web Management
The H3C LS-3100V3-10TP-PWR-EI-H1 is a high-performance 10-port Gigabit PoE+ switch designed for small businesses, offices, and surveillance networks. It delivers Power over Ethernet (PoE+) support, web-based management, and enterprise-grade security, making it ideal for powering IP cameras, wireless access points, VoIP phones, and other networked devices while ensuring stable data transmission.
✔ 10-Port Gigabit Ethernet – All ports support 10/100/1000Mbps auto-negotiation for high-speed connectivity.
✔ PoE+ Power Delivery – Complies with IEEE 802.3af/at, providing up to 30W per port (max. 150W total) for connected devices.
✔ Web Smart Management – Intuitive web GUI for easy configuration of VLANs, QoS, and port security.
✔ Enhanced Security – Supports 802.1X authentication, port security, ACLs, and MAC address binding to prevent unauthorized access.
✔ Reliable & Energy-Efficient – Fanless design for silent operation with IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption.
| Model | H3C LS-3100V3-10TP-PWR-EI-H1 |
|---|---|
| Ports | 10 × 10/100/1000BASE-T (RJ45) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Max PoE Power | 30W per port, 150W total |
| Switching Capacity | 20Gbps |
| MAC Address Table | 8K entries |
| VLAN Support | 802.1Q VLAN, Port-based VLAN |
| QoS | 802.1p, DSCP prioritization |
| Security | 802.1X, ACL, Port Security |
| Management | Web GUI, HGMP cluster |
| Power Supply | 100-240V AC, 50/60Hz |
| Operating Temperature | -5°C to 55°C |
IP Surveillance Systems – Powers multiple PoE cameras without extra wiring.
Small Office Networks – Connects PCs, printers, and VoIP phones with Gigabit speeds.
Wireless Deployments – Supports Wi-Fi 6 APs with sufficient PoE budget.
This H3C PoE switch combines plug-and-play simplicity with advanced networking features, making it a cost-effective solution for growing businesses. Buy now for a reliable, high-power PoE+ network infrastructure!
