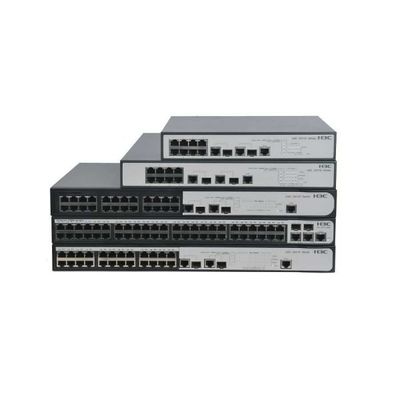

H3C LS-S3110-26TP-2 Switch : 26-Port Gigabit , Web Managed , Fanless Design For SMB Networks
The H3C LS-S3110-26TP-2 is a high-performance 26-port Gigabit Layer 2 switch designed for small and medium businesses (SMBs), branch offices, and enterprise edge networks. Featuring 24x 10/100/1000Base-T ports and 2x Gigabit SFP slots (Combo ports), it delivers flexible, high-speed connectivity for workstations, IP cameras, VoIP phones, and servers. With fanless silent operation and energy-efficient design, it’s ideal for noise-sensitive environments like offices and classrooms.
✔ Full Gigabit Speeds – All ports support 1Gbps bandwidth, eliminating bottlenecks for bandwidth-intensive applications.
✔ Web Smart Management – Intuitive web-based GUI and CLI (Telnet/SSH) for easy setup, VLANs, QoS, and monitoring.
✔ Dual SFP Uplinks – Fiber (SFP) or copper uplink options for long-distance or high-reliability connections.
✔ Enterprise-Grade Security – Supports 802.1X, ACLs, Port Security, and DHCP Snooping to prevent unauthorized access.
✔ Robust & Silent – Fanless design ensures zero noise, while STP/RSTP/MSTP prevents network loops.
✔ LLDP & Easy Troubleshooting – Auto-detects network topology for simplified maintenance.
| Category | Specification |
|---|---|
| Ports | 24x 10/100/1000BASE-T, 2x 1000BASE-X SFP (Combo) |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 16K entries |
| Power Consumption | <15W (typical) |
| Dimensions | 440 x 160 x 43.6 mm (Rack-mountable) |
| Management | Web, CLI (Telnet/SSH), SNMP, LLDP |
| Security | 802.1X, ACL, Port Isolation, Storm Control |
| Certifications | CE, FCC, RoHS |
✅ Office Networks – Reliable connectivity for desktops, printers, and VoIP systems.
✅ Surveillance Deployments – Supports IP cameras & NVRs with Gigabit backhaul.
✅ Small Data Centers – Cost-effective server access layer switch.
Why Choose H3C?
As a leading networking brand, H3C delivers enterprise-grade reliability at an SMB-friendly price. The LS-S3110-26TP-2 balances performance, ease of use, and silent operation, making it a top choice for hassle-free Gigabit networking.
