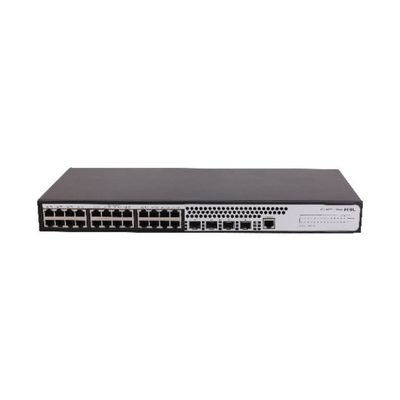

H3C LS-WS5820-28P-WiNet-H1 PoE+ Switch 370W Power , Cloud Management , 24x Gigabit Ports
The H3C LS-WS5820-28P-WiNet-H1 is a high-performance 28-port Gigabit PoE+ switch designed for small to medium businesses, campuses, and surveillance networks. With 24× Gigabit PoE+ ports (30W per port) and 4× SFP fiber uplinks, it delivers high-speed connectivity and flexible deployment for IP phones, wireless access points (APs), and IP cameras.
✅ Powerful PoE+ Support – Provides up to 370W total PoE budget, supporting IEEE 802.3af/at devices like Wi-Fi 6 APs, VoIP phones, and security cameras without extra power cables.
✅ Cloud-Managed via H3C WiNet – Remotely configure, monitor, and troubleshoot the switch through H3C’s intuitive cloud platform, reducing IT overhead.
✅ Enterprise-Grade Reliability – Features STP/RSTP/MSTP for loop prevention, QoS prioritization, and dual power supply support (optional) for uninterrupted operation.
✅ Advanced Security – Includes port security, ACLs, and VLAN segmentation to protect against unauthorized access.
✅ Energy-Efficient Design – Auto power adjustment and fan speed control minimize power consumption.
| Model | H3C LS-WS5820-28P-WiNet-H1 |
|---|---|
| Ports | 24× 10/100/1000BASE-T PoE+, 4× 1000BASE-X SFP |
| PoE Standard | IEEE 802.3af/at (30W per port) |
| Total PoE Budget | 370W |
| Switching Capacity | 56Gbps |
| Forwarding Rate | 41.7Mpps |
| Cloud Management | H3C WiNet (Web & Mobile App) |
| Layer 2 Features | VLAN, QoS, STP/RSTP/MSTP, Port Mirroring |
| Security | ACL, Port Isolation, MAC Binding |
| Power Supply | Built-in (Optional Redundant PSU) |
| Dimensions | 440×220×43.6mm (1U Rack-Mountable) |
✔ Office Networks – Power IP phones and wireless APs with a single cable.
✔ Surveillance Systems – Connect multiple IP cameras with PoE+ support.
✔ Smart Hotels/Campuses – Deploy Wi-Fi 6 access points with centralized cloud management.
